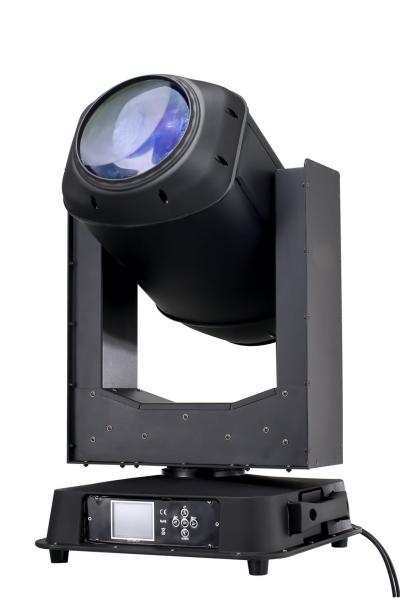

IP65 Colorstage 5 Beam Spider Moving Head / LED Disco Lights 1.2° Beam Angle

Colorstage 5 Beam Spider Moving Head Features

·Equipped LED display, easy operate;

·Have the prism function and prism rotation function;

·DMX linear dimmer function;

·Built-in programs under the master and slave control mode;

·Pan and tilt revise the location automatically;

·0~100% linear dimmer, strobe speed adjustable.

Colorstage 5 Beam Spider Moving Head Applications:

stage show, DJ, Disco, studio, theatre, and entertainment events etc. It can control by DMX, master-slave, auto-running. And Sound control.

Colorstage 5 Beam Spider Moving HeadSpecifications:

Color Wheel: Adopt Taiwan high color temperature color filter, 11pcs colors+open, half color and rainbow effect
Fixed Gobo Wheel: 14pcs fixed gobos+open, bidirectionally shaking
Prism Wheel: 1pc 8-facet prism, bidirectionally rotating at variable speed(3-facet or 16-facet prism is optional)
Rainbow Prism: Adopt Taiwan 7 colors filters, make colorful beams

Frost: 1pc frost filter, can achieve soft light effect
Shutter/Strobe: Independently strobe with double motors, 0.5-20 F.P.S, speed adjustable
Dimmer: 0-100% mechanical dimming, smooth without flicker
Lens: Adopt imported multilayer coating lens combination, the diameter of beam aperture is up to 200mm
Projection Distance: Up to 1000m in similar parallel light
Control Mode: DMX512, with RDM function, you can use a large DMX512 controller to remotely set the address code
Channel: 14/18
Display: 2.8 inch colorful LCD screen, 180° inversion
Lamp Control: Control the lamp on/off via controller
Pan and Tilt: Adopt high precision three phase motors for pan and tilt, accurate location, smoothly moving, automatic correction location
Pan: 540°rotation, 8/16Bit adjustment
Tilt: 270°rotation, 8/16Bit adjustment
Fixture Material: High hardness heat dissipation aluminum profile, flame-retardant anti-aging high temperature engineering PVC, adopt outdoor imported fine sand spraying technology, anti-uv treatment, anti-aging, high temperature, long service life
IP Grade: IP65
Cooling System: Adopt imported fans(Japan), the chip controls the fan speed, the original heat dissipation structure, cooperate with the radiator shell, guarantee the long time outdoor use
Feature: It can be programmed independently via LCD display, master and slave lights are running synchronously without controller operation
Fixture N.W.: 32.5KG
Packing G.W.: carton: 35.5KG
Fixture Size: L430*W400*H780mm
Packing Size: carton: L570*W500*H930mm

Our Advantages

1. economic price

2. Powercon in and out

3. Small size but high brightness

4. Forward or reverse rotation fast and smooth

5. Acrylic lens which can make produce better light output

6. Long time testing(48-120 hours ), more guranteed quality
